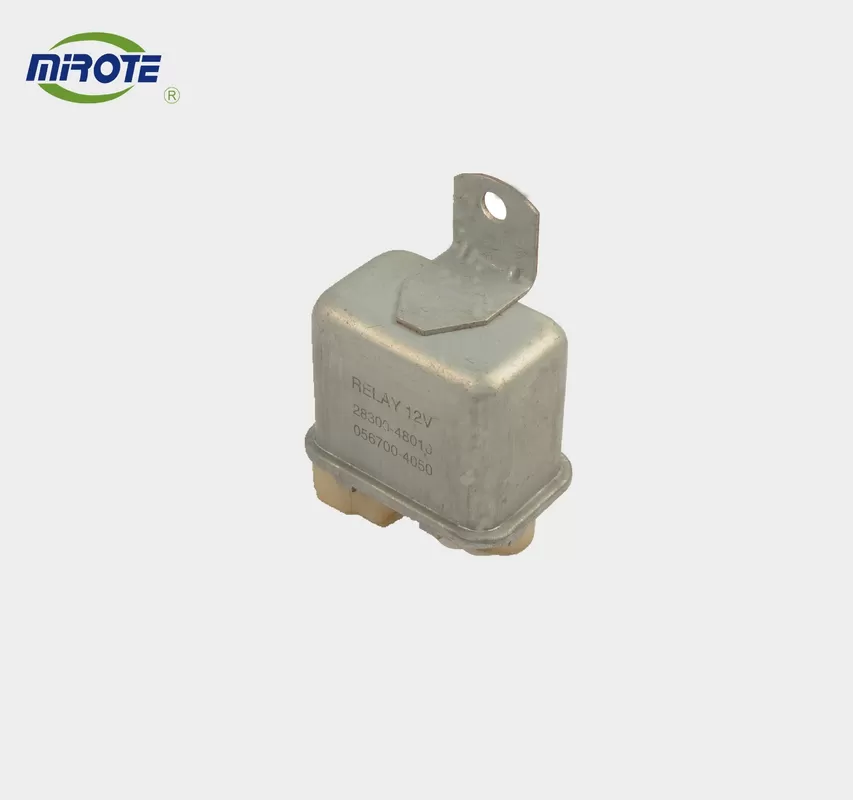

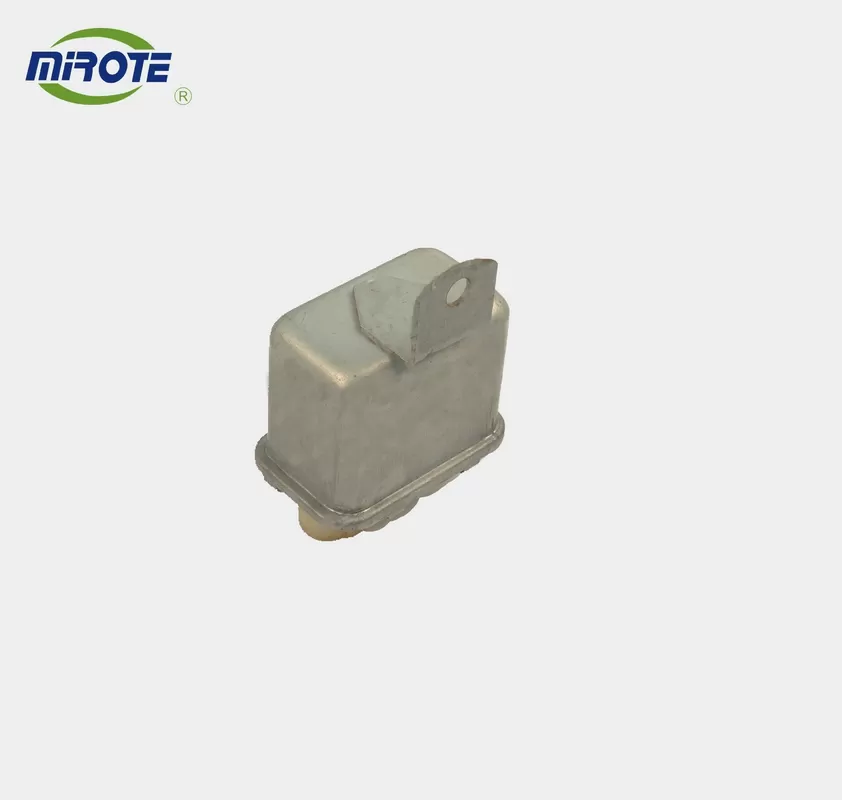

4 Copper Pins Auto Electrical Relays Waterproof 12V For TOYOTA LAND CRUISER BJ40 HJ40 28300-48010 056700-4050

Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY584
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 100pcss/box 1000pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100000pcs/week
+86-574-88124152 Contact Us
  • Description

  • Feature

    • High switching current at 16A in a small size.
    • 1 N/O contact with a Tungsten pre-make contact.
    • Dielectric Strength up to 5,000VAC.
    • 1 pole 16 A, 1 NO contact(W pre-make contact + AgSnO2).
      165 A / 20 ms inrush peak current.
    Cover:  Yellow Plastic Cover Wire: Copper
    Contact: Copper / Silver Contact Sealed: Waterproof
    Terminal: 4 Copper Pins Current: 16A
    Voltage: 12V
    High Light: car electrical relay, universal horn relay

    Parameter

    Contact Form 1H(1A),1Z(1C)
    Contact Resistance 100mΩ(1A 6VDC)
    Contact Material Silver Alloy
    Contact Load 1H:40A 14VDC 1Z:30A/14VDC
    Max switch Current 40A
    Max switch Power 560w
    Max switch Voltage 60VDC
    Mechanical Life 1×107 times
    Electrical Life 5×104 times
    Performance Parameter
    Insulation Resistance 100mΩ ,500VDC
    Operate Time Max:15 ms
    Release Time Max:10 ms
    Coil Temperature Max:60°C
    Temperature Ran ﹣40°C~﹢85°C
    Shock Double shock:1.5mm 10~55Hz
    Humidity 35%~85%RH

    Package

       Nowadays, packaging is important; we have various packaging methods for your selection.

    1. 100pcs per paper box , 1000pcs in a master carton
    2. You can also customize your package, as long as the quantity is considerable.

    Guarantee
       5.To give you peace of mind regarding after-sales service, we offer a one-year quality guarantee and a 10,000-cycle lifetime.

    Delivery time and Shipping
           Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
