Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
  • Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
  • Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
  • Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
  • Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
  • Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
  • Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142

Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY508-1CG
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 100pcss/box 1000pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100000pcs/week
+86-574-88124152 Contact Us
  • Description
  • Cover: Black Plastic Cover Wire: Copper
    Contact: Copper / Silver Contact Sealed: Waterproof

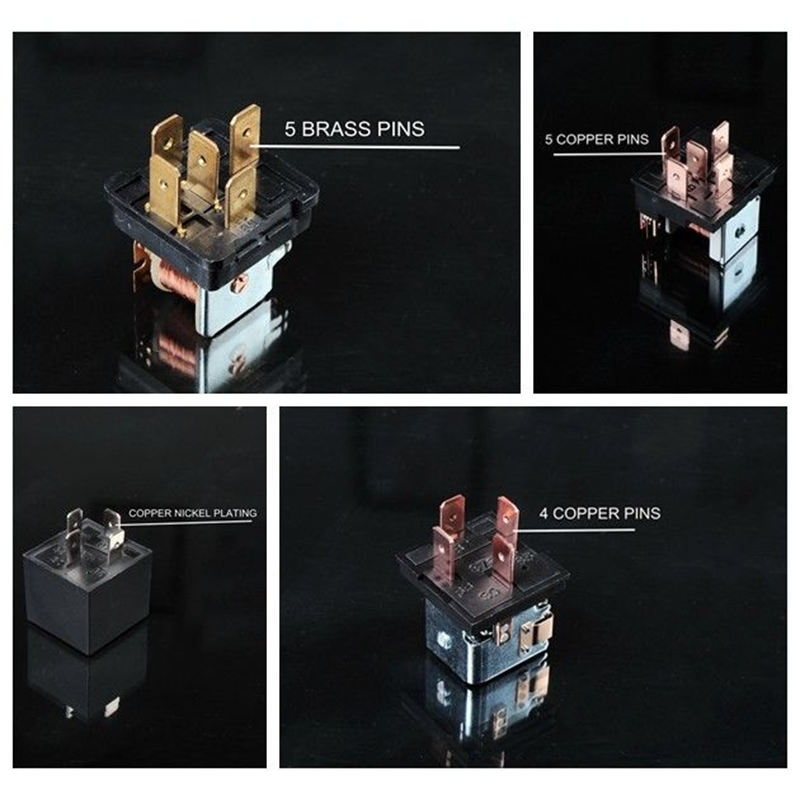

    Terminal: 5 Copper Pins Current: 15A
    Voltage: 5V 12V
    High Light: miniature power relay, universal horn relay

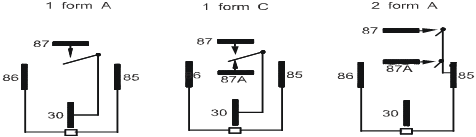

    1. Circuit Diagram

             Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142 5Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142 6

    2. Parameter

    Contact Form 1H(1A),1Z(1C)
    Contact Resistance 100mΩ(1A 6VDC)
    Contact Material Silver Alloy
    Contact Load 1H:40A 14VDC 1Z:30A/14VDC
    Max switch Current 40A
    Max switch Power 560w
    Max switch Voltage 60VDC
    Mechanical Life 1×107 times
    Electrical Life 5×104 times

    Performance Parameter
    Insulation Resistance 100mΩ ,500VDC
    Operate Time Max:15 ms
    Release Time Max:10 ms
    Coil Temperature Max:60°C
    Temperature Ran ﹣40°C~﹢85°C
    Shock Double shock:1.5mm 10~55Hz
    Humidity 35%~85%RH



    1. Feature

    • Slim type with 15A-rated load.
    • Suitable for plastic and metal to high temperatures and various chemical solutions.
    • Highly adaptable to harsh environments with shock and vibration.
    • Wash tight and flux-proofed type available.
    • Comply with RoHS and REACH regulations.

    2. Package
    Nowadays, packaging is important; we have various packaging methods for your selection.

    •  You can also customize your package, as long as the quantity is considerable.

    3. Guarantee
    To make you rest assured about the after-sales service, we would like to provide a one-year quality guarantee, 10000times lifetime.

    4. Delivery time and Shipping
    Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
