air conditioner fan relay RY186 RY235 056700-6480 056700-7141 94847865 90987-02007 056700-7030 82501-AA210/515580-40162

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY102-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 25pcs/box 500pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100000pcs/week
+86-574-88124152 Contact Us
  • Description
  • Cover: Plastic Cover Wire: Copper
    Pins Material: Copper / Iron Contact: Silver / Copper Contact
    Waterproof: Sealed Useage: Air Condition
    Terminal: 4 OE: 90987-02006 056700-6912
    High Light: mini automotive relay, standard automotive relay

    2. Brief Introduction

    This product is mainly used in the automobile air conditioning field; the shell is shiny black and can be laser-engraved or oil-printed. In recent years, with the expansion of sales, the application field has been extended to the lights, wipers and other fields.

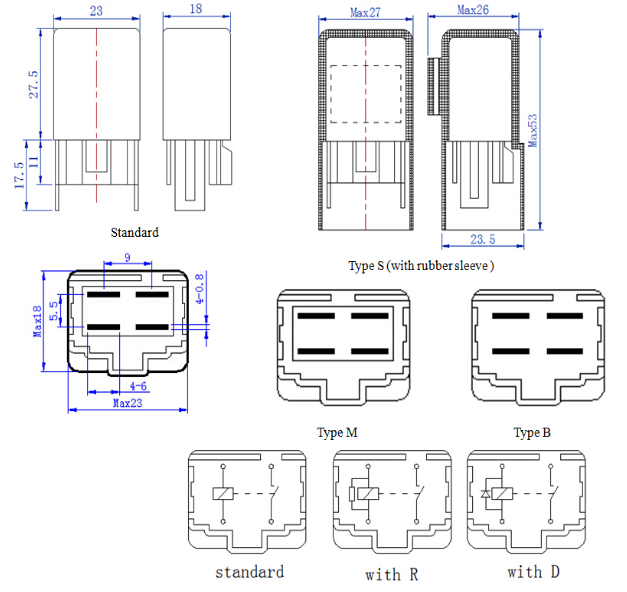

    air conditioner fan relay RY186 RY235 056700-6480 056700-7141 94847865 90987-02007 056700-7030 82501-AA210/515580-40162 3



    3. Main Feature

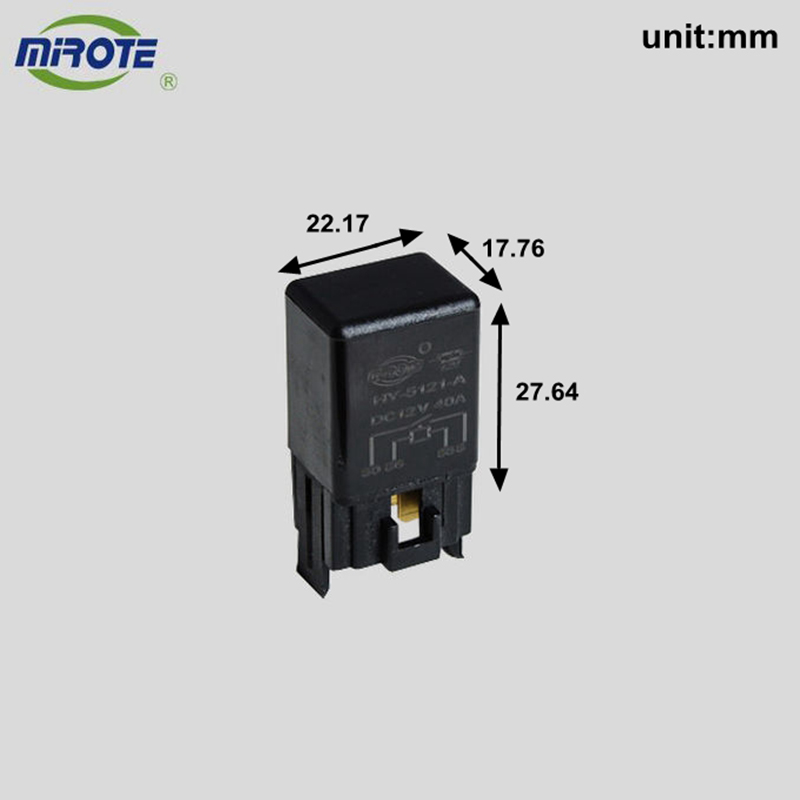

    1. Small size (28.2x23x29.4 mm) produces a switching capacity up to 30A for high-density P.C. Board mounting technique.
    2. The contact form construction is 1A
    3. The Surge Resistance of the BAL11 series is 10,000V
    4. Sealing Construction (Free from dust and solder flux): BAL11 -S: Plastic duct cover..
    5. The selection of plastic insulation material is designed for high temperature and provides better chemical solution performance.
    6. RoHS Compliant.


    4. Parameter

    Nominal Load(Resistive Load Cosφ=1)

    Max. Allowable Current 30A
    Max. Allowable Voltage DC28V
    Max. Allowable Power Force 420W
    Contact Material Ag Alloy
    Contact Form SPS

    5. Application

     Air Conditioning, Fridge, Washing Machine, etc.
    Insulation Resistance…………... 1,000 MegaΩMin. at 500VDC

    Max. On/Off Switching:

    Electrical 30 Ops per minute
    Mechanical 300 Ops per minute
    Temperature Ran –40~85℃
    Humidity Range 45~85% RH
    Coil Temperature Rise 35℃ Maximum
    Endurance 10 to 55 Hz dual
    Amplitude width 1.5mm Error Operation 10 to 55 Hz dual amplitude width 1.5mm
