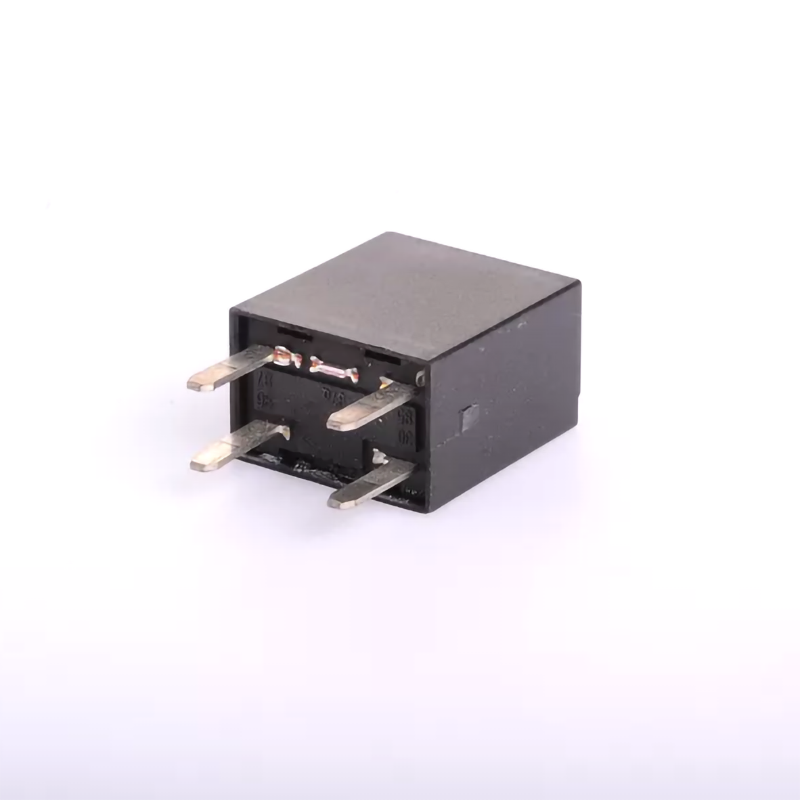

Mini Automotive Relay 12088592 12V Relay for BUICK , ISUZU, CHEVROLET

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY800
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1pc/box 500pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 200000pcs/week
0086-574 - 88124152 Contact Us
  • Description
  • Contact Form: 1A 1C Wire: Copper
    Pins: 2.8mm Plug In Terminal Contact: AgSnO2
    Waterproof: Sealed Car Series: HYUNDAI, KIA
    OE: 12135175 12177236
    High Light: gm fuel pump relay，adjustable timer relay


    1.Product Details.

    Feature: With 1A , 1C two contact forms

    Application: Light/ Headlight / Fog Light Control

    Horn Control and A/C compressor Control

    2.Parameter

    Characteristics
    Contact Form 1A  1C
    Contact material Silver Alloy
    Current type NO:30A 14VDC  NC:20A 14VDC
    Max Switching Voltage 30VDC
    Max Switching Current 30A
    Max Switching Power 420W
    Contact Resistance Voltage Drop <100Ω
    Electric life 1000000ops
    Mechanical life 10000000 ops
    Ambient temperature -40°C~+125°C
    Operate time/Release time 10msec.Max / 10msec.Max
    Functional Humidity 10 ~ 55Hz
    Construction Waterproof or Dust cover
    Weight 19.6g



    1. Product packaging
    Nowadays, package is important, we have various packing methods for your selection.
    You can also customize your package, as long as the quantity is considerable.

     2.Guarantee
    To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.

    3.Terms of payment
    T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    4. Delivery time
    Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
    We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
