| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MIROTE |
| Model Number: | HY661-8 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25pcs/box 500pcs/ctn |
| Delivery Time: | 15-30days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100000pcs/week |
| Power: | High Power | Wire: | Copper |
| Pins: | 4 Pins | Contact: | Silver Contact |
| Waterproof: | Sealed | Useage: | Starter |
| OE: | 39160-37110G 90229206G | ||
| High Light: | heavy-duty automotive relay, car power relay | ||

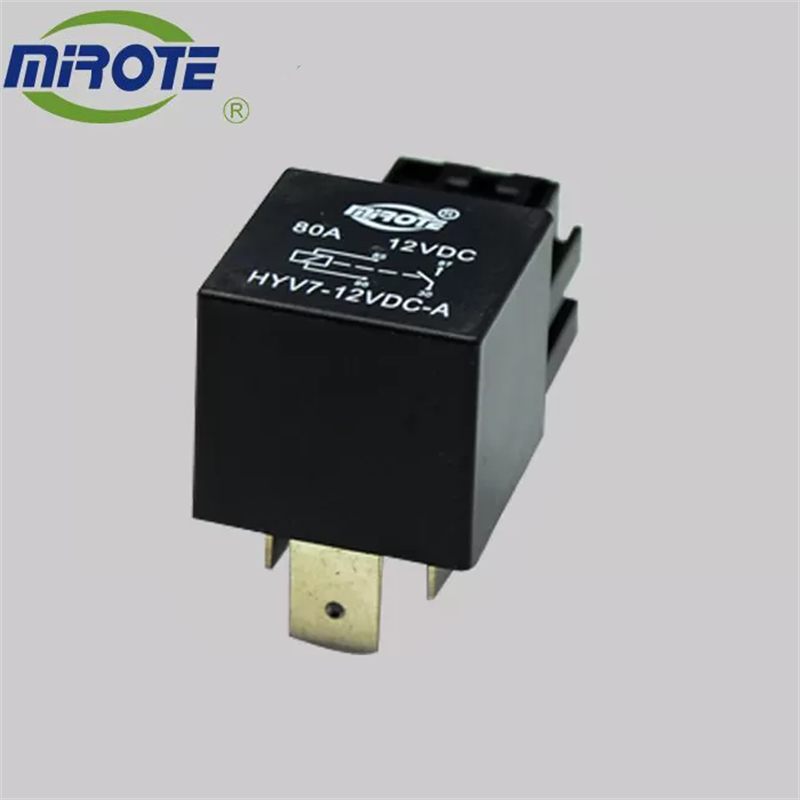

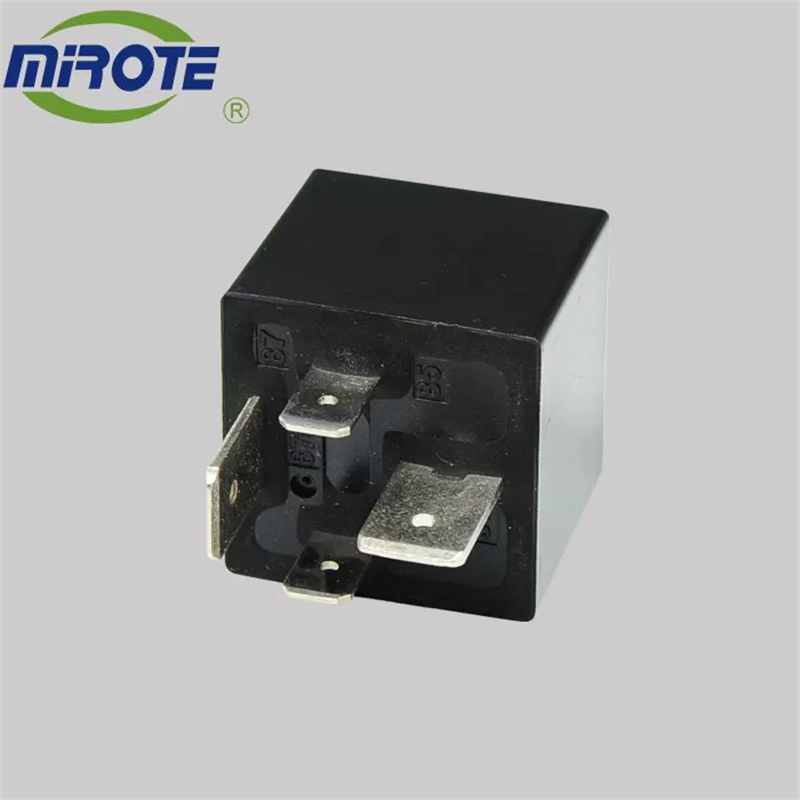

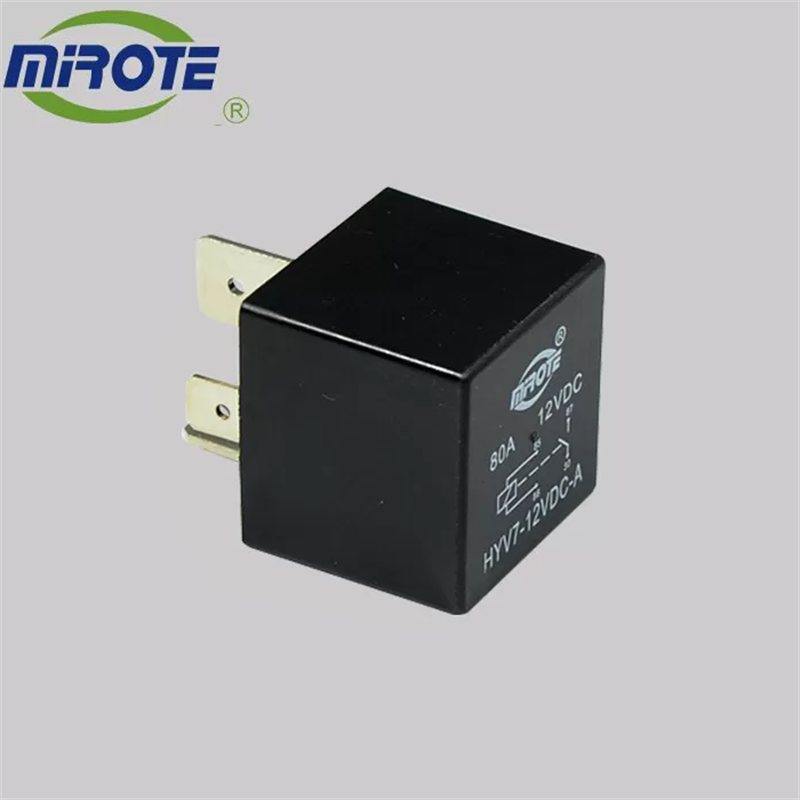

2. Brief Introduction
This product is a brand new 5-pin relay, which can be used in tarter killing, dome light supervision, trunk releasing, polarity changing, and so on.
With 80A coil capacity, it is able to handle high current applications with ease and to change a low current to a high current. It is suitable for any 12V applications.
3.Parameter
| Nominal Voltage(UN) | 12V | Nominal Current | 80A/14V |
| Operatingg Voltage(Uop) | 9-15V | Max.Cont.Current | 80A |
| Contact Resistance | ≤30mΩ | Max.Switching Current ON | 100A |
| Pull ln Voltage | ≤7,8V | Max.Switching Current OFF | 80A |
| Pull-Off Voltage | 1≤V≤5 | lnsulati0n Resistance | 100 MΩ min |
| Coil Power Consump. | 1,6W | Dielectric Strength Between Contacts | 50Hz 500V |
| Coil Resistance(Ω±%10) | 90Ω | ||
| Operating Life (Electrical) | 105 | Terminals Strength | 100N |
| Mechanical Characteristics | |||

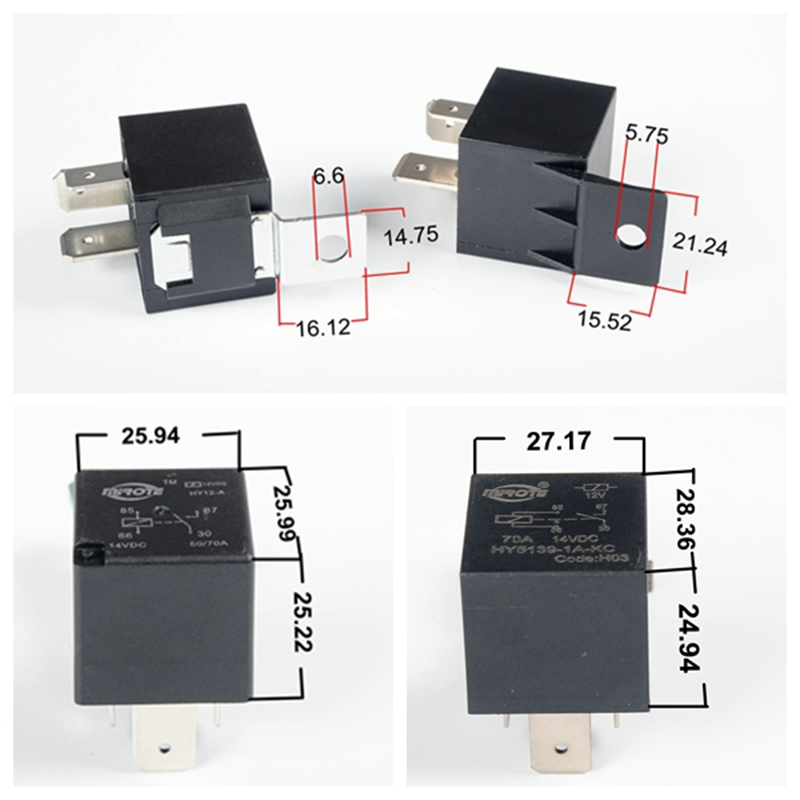

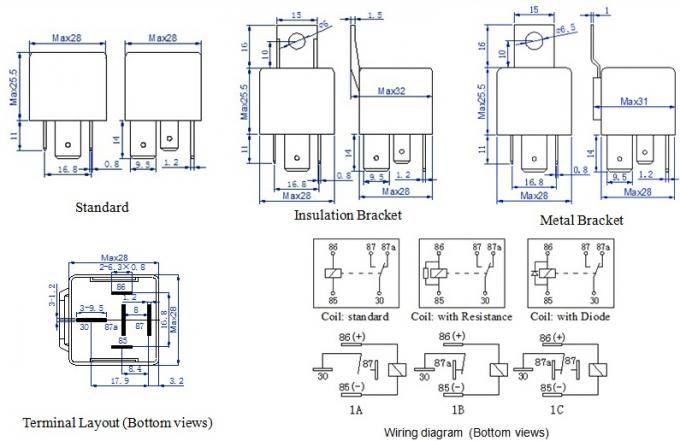

| Contact Material | AgSnO2 | Terminals | CuZn 9.5×0.8mm CuZn 6.3×0.8mm |
| Contact Operate Time | ≤7ms | ||
| Contact Release Time | ≤5ms | Fixed Contact | AgSnO2 |
| Operation Temperature | ﹣30..+85°C | Moving Contact | AgSnO2 |

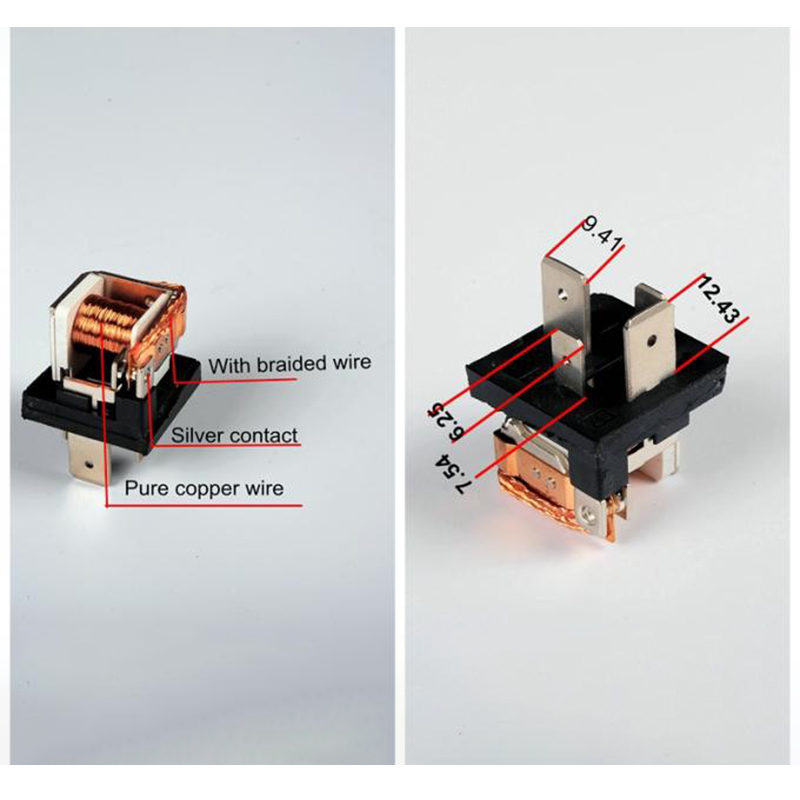

| Relative Humidity | %85(at40°C) | Coil | Oxygen Free Copper |
| Shock Resistance | 147m/s2 11ms | Base Plate | Nylon PA6,6 |
| Operation Life (Mechanical) | 107 | Cap | Nylon PA6,6 |
| Mass | 48g | |
|
1. Application
Air Conditioning, Fridge, Washing Machine, etc.
2. Advantage

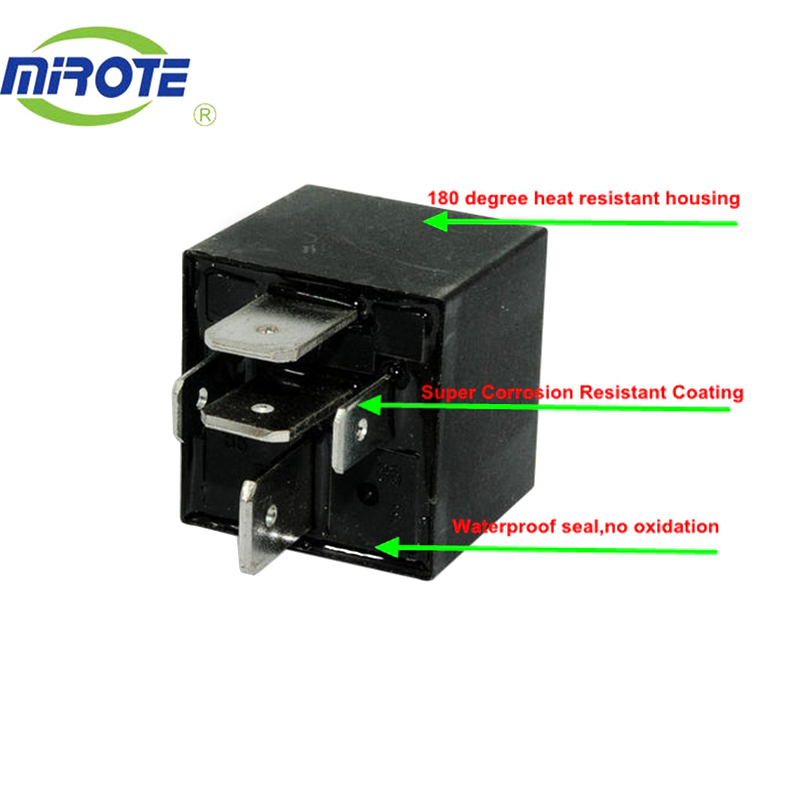

We have realized a fully automated production so that a short production time is available. Products are of stable quality, can be waterproof, and open frame type. High-quality silver contact points make the contact resistance reach the international standard.
3. Package
Nowadays, packaging is important; we have various packaging methods for your selection.
You can also customize your package, as long as the quantity is considerable.
4. Guarantee
To make you rest assured about the after-sales service, we would like to provide a one-year quality guarantee, 10000times lifetime.
5. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
1. Application
Air Conditioning, Fridge, Washing Machine, etc.
2. Advantage
We have realized a fully automated production so that a short production time is available. Products are of stable quality, can be waterproof, and open frame type. High-quality silver contact points make the contact resistance reach the international standard.
3. Package
Nowadays, packaging is important; we have various packaging methods for your selection.
You can also customize your package, as long as the quantity is considerable.
4. Guarantee
To make you rest assured about the after-sales service, we would like to provide a one-year quality guarantee, 10000times lifetime.
5. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
